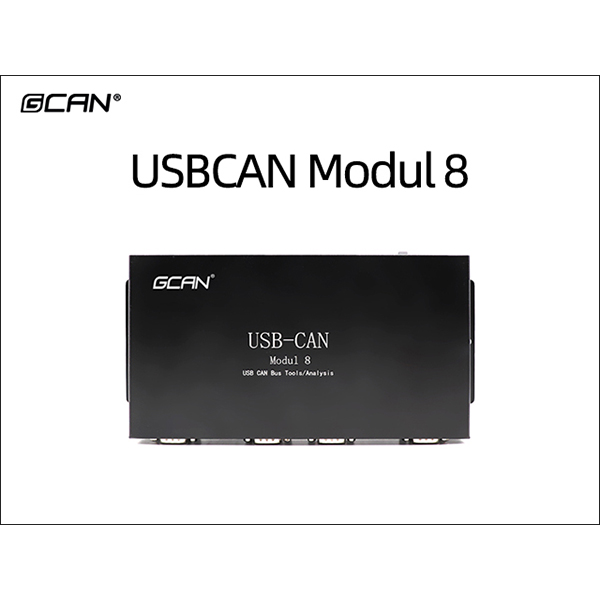

USBCAN Modul 8八通道CAN分析仪 USBCAN Modul 8 eight-channel CAN analyzer

1.功能简介
1. Function Introduction

1.1功能概述
1.1 Function Overview

USBCAN-Modul 8是集成8路CAN接口的高性能型CAN-Bus总线通讯接口卡。该型号CAN卡可兼容USB2.0总线全速规范，采用USBCAN-Modul 8高性能CAN接口卡，PC可以通过USB接口快速连接至CAN-Bus网络，构成现场总线实验室、工业控制、智能小区、汽车电子网络等CAN-Bus网络领域中数据处理、数据采集的CAN-Bus网络控制节点。
USBCAN-Modul 8 is a high-performance CAN-Bus communication interface card that integrates 8 CAN interfaces. This model of CAN card is compatible with the USB2.0 bus full-speed specification. By using the USBCAN-Modul 8 high-performance CAN interface card, a PC can quickly connect to the CAN-Bus network through the USB interface, forming a CAN-Bus network control node for data processing and data acquisition in CAN-Bus network fields such as fieldbus laboratories, industrial control, smart communities, and automotive electronic networks.

USBCAN-Modul 8高性能CAN接口卡是CAN-Bus产品开发、CAN-Bus数据分析的强大工具，同时具有体积小巧、即插即用等特点，也是便携式系统用户的最佳选择。USBCAN-Modul 8接口卡上自带USB接口，集成CAN接口电气隔离保护模块，使其避免由于瞬间过流/过压而对设备造成损坏，增强系统在恶劣环境中使用的可靠性。
The USBCAN-Modul 8 high-performance CAN interface card serves as a powerful tool for CAN-Bus product development and CAN-Bus data analysis. With its compact size and plug-and-play functionality, it is also the ideal choice for users of portable systems. The USBCAN-Modul 8 interface card comes equipped with a USB interface and integrates a CAN interface electrical isolation protection module, safeguarding the device against damage caused by transient overcurrent/overvoltage and enhancing the reliability of the system in harsh environments.

USBCAN-Modul 8高性能CAN接口卡支持WindowsXP/Win7/Win10等32位/64位操作系统，还可支持Linux操作系统。我公司为用户提供统一的应用程序编程接口和完整的应用示范代码，含VC、VB、.Net、Delphi、Labview和C++Builder等开发例程示范，方便用户进行应用程序开发。
The USBCAN-Modul 8 high-performance CAN interface card supports 32-bit/64-bit operating systems such as Windows XP/Win7/Win10, and also supports Linux operating systems. Our company provides users with a unified application programming interface and complete application demonstration code, including development routine demonstrations for VC, VB, .Net, Delphi, Labview, and C++Builder, to facilitate application development for users.

USBCAN-Modul 8接口卡可使用我公司自主开发的ECANTools通用测试软件，可执行CAN-Bus报文的收发和监测等功能。
The USBCAN-Modul 8 interface card can utilize our company's proprietary ECANTools universal testing software, which enables functions such as transmitting, receiving, and monitoring CAN-Bus messages.

1.2性能特点
1.2 Performance Characteristics

●PC接口符合USB2.0全速规范，兼容USB1.1及USB3.0；
The PC interface complies with the USB2.0 full-speed specification and is compatible with USB1.1 and USB3.0;
●集成8路CAN-Bus接口，使用DB9接线方式；
● Integrated with 8-channel CAN-Bus interfaces, utilizing DB9 wiring method;
●支持CAN2.0A和CAN2.0B帧格式，符合ISO/DIS 11898规范；
● Supports CAN2.0A and CAN2.0B frame formats, compliant with ISO/DIS 11898 specifications;
●CAN-Bus通讯波特率在5Kbps~1Mbps之间任意可编程；
● The CAN-Bus communication baud rate can be programmed arbitrarily within the range of 5Kbps to 1Mbps;
●使用DC+24V电源供电；
●Powered by DC +24V power supply;
●CAN-Bus接口采用电气隔离，隔离模块绝缘电压：DC 1500V；
● The CAN-Bus interface employs electrical isolation, with the isolation module having an insulation voltage of DC 1500V;
●最高接收数据流量：14000 fps；
●Maximum received data flow: 14000 fps;
●CAN端接收报文时间戳精度可达1us；
● The precision of the timestamp for messages received at the CAN terminal can reach 1us;
●支持WinXP、Win7、Win10等Windows操作系统；
● Supports Windows operating systems such as WinXP, Win7, and Win10;
●支持Linux操作系统；
● Supports Linux operating system;
●支持ECANTools测试软件；
● Supports ECANTools testing software;
●工作温度范围：-40℃~+85℃；
● Operating temperature range: -40℃~+85℃;

1.3典型应用
1.3 Typical Applications

●CAN-Bus网络诊断与测试
● CAN-Bus network diagnosis and testing
●汽车电子应用
● Automotive electronics applications
●电力通讯网络
● Power communication network
●工业控制设备
● Industrial control equipment
●高速、大数据量通讯
● High-speed, large-data-volume communication

USBCAN Modul 8设备使用手册链接
Link to the user manual for USBCAN Modul 8 device

www.gcgd.net/filedownload/2977748
